A team of researchers at North Carolina State University, working with organic photovoltaic cell (OPV) company NextGen Nano, has demonstrated how adding semi-transparent organic solar cells (OSCs) to greenhouses allows growers to generate electricity and simultaneously cultivate lettuce, reducing greenhouse energy demands. The results will lay the groundwork for power generation in sustainable greenhouse cultivation.
The research, published in Cell Reports Physical Science, found that red lettuce can be grown in greenhouses with OSCs that filter out the wavelengths of light used to generate solar power. This demonstrates the feasibility of using transparent solar panels in greenhouses to fulfil their high electricity demands, while not reducing the crop yield.
Over a 30-day period, four lettuce groups were grown under different light colour compositions using OSC filters. This included a control group exposed to a full spectrum of white light. No significant difference in fresh-weight or chlorophyll content between the control group and the experimental groups was found, suggesting that removing the selective portions of light spectrum needed to generate electricity did not affect the growth of the crop. The harvested wavelengths could then be used to power the energy-intensive lighting, thermal management and irrigation systems needed for greenhouse cultivation.
“Greenhouses are used to grow plants because they drastically increase yield in non-native climates, while lowering water consumption and pesticide use compared to conventional farming,” explained Doctor Carr Ho, research scientist at NextGen Nano. “But greenhouse glazing has poor thermal insulation, so heating and ventilation systems need to be installed to help maintain optimal conditions. Along with supplemental lighting, this leads to large, unsustainable energy consumptions.
“With this research, scientists at NCSU have found a way for greenhouse cultivation without the large energy demands traditionally associated with it,” continued Ho. “By using OSCs with the right optical coatings and design features, growers can manage the light transmission, power generation and thermal loads in a greenhouse for high-productivity at low-energy usages.
The use of DBR coatings not only provides an opportunity to increase power generation but it also can be used to reduce overheating in the greenhouse. We show that for a greenhouse in Sacramento, California, the number of hours that the greenhouse overheats can be reduced from 280 to 82 h when using OSCs with a DBR tuned to reflect NIR light. While this does not have a large impact on energy demand, it is expected to improve crop production.
Lastly, using OSC electrodes that can also function as low-ε coatings was shown to significantly reduce the heating load of the greenhouse. Combining the minimal impact observed on plant productivity, along with power generation and improved thermal management with the use of ST-OSC, suggest that integrating OSCs with greenhouses is a promising strategy to achieve environmentally sustainable high-intensity greenhouse-based agriculture.
“Further research is needed to develop OSCs capable of increasing production yield in greenhouses. But the research supported by NextGen Nano certainly suggests that integrating OSCs into greenhouse cultivation is a promising strategy to achieve sustainable, high-intensity greenhouse-based agriculture.”
In addition to the support for this paper, NextGen Nano has developed a patented OPV device that can be used in the next generation of solar power. This technology is made from flexible, robust, Earth-friendly biopolymers with the aim to replace the traditional brittle solar cells made from toxin-heavy metals, like lead perovskites.

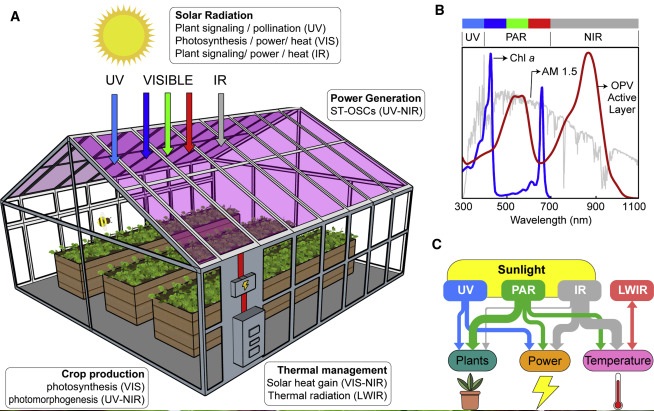

The lighting demands in the greenhouse will depend on geographic location and crop. While the lettuce is shown to grow well under the ST-OSCs, it is known to be a shade-tolerant crop.7 For plants that have greater lighting demands, alternative ST-OSC device designs and active layers may be needed. The greenhouse location will also dictate the daily solar radiation entering the greenhouse as well as the heating and cooling needs of the space. In this section, we consider ST-OSC design considerations that affect crop production, electricity generation, and the thermal load of the facility.
The full research paper is accessible on the Cell Reports website. For more information on NextGen Nano’s other product developments, visit the company website https://nextgen-nano.co.uk/.
